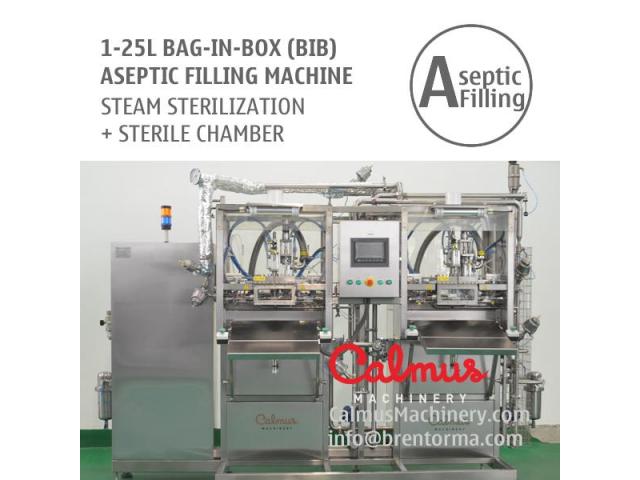

Semi-automatic Double-head BiB Aseptic Filling Machine | Bag-in-Box Aseptic Filler


The Double-head BiB Aseptic Filling Machine | Bag-in-Box Aseptic Filler is designed for aseptically filling spout-prepared aseptic bags with sterile fluids like natural juice, concentrate, vegetable juice, fruit syrup, fruit jam, magma beverage, dairy product and pharmaceutical. The machine can use various spigots including Vitop and Scholle's. It is designed with CIP (Clean-in-Place) function and a circuit for connecting to a CIP system. All the fluid-contact parts are made with grade 316L stainless steel and the frame made with 304 stainless steel.


Features:
1) Grade 304 stainless steel body and 316L stainless fluid-contact parts.
2) Bags ranging in size from 1 to 25 litres can be used.
3) Steam is the unique employed sanitizing system to avoid chemical pollution.
4) Employed decapping confirmation system ensures filling will not work before decapping and this guarantees the sterile room not to be polluted by the fluid.
5) Perfect-design filling system ensures reliable filling.

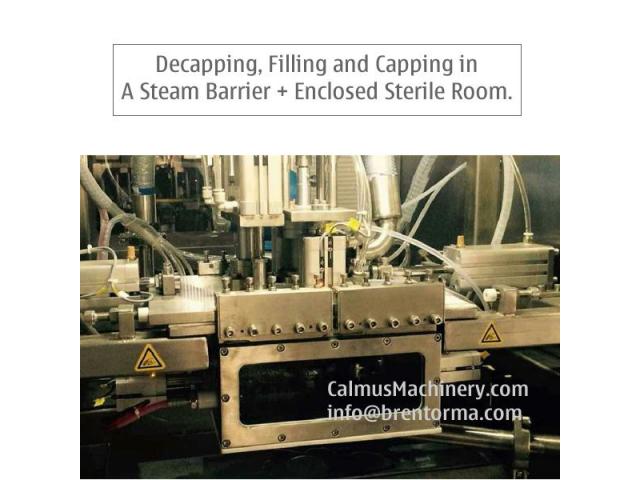

6) Decapping, filling and capping parts move in an enclosed overpressure steam room which ensures the sterile conditions.
7) Steam barrier and sterilization by spraying of cap and feed gate with steam and hydrogen peroxide (optional) before decapping ensures a true aseptic filling.
8) A pressure sensor working with a pumping system ensures the stable overpressure in either sterile chamber.
9) Decapping, filling and capping all work automatically by control system.
10) Compact construction.
11) Reliable and in a high standard. Most components are German branded.
12) Designed with CIP (Clean-in-Place) function and circuit connection.
13) New technology ensures no condensed water dripping onto bags.
14) A weight or flow meter system employed improves filling precision and truly achieves the quantitative filling.
15) Easy to use. The touch-screen control system makes operation easy.


Specifications:

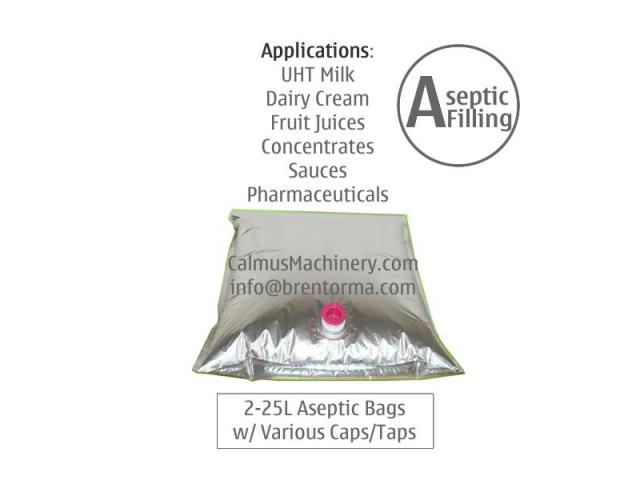

Applicable bag: 1-inch or 2-inch spout prepared aseptic bags, 1-25 litres. (Spout is called "Gland" or "Flange" too.)
Filling capacity: 240 bags/hour (10 litres aseptic bag)
Power: 1.5KW
Compressed air: 6-8bar, 2m3/h
Food-grade steam: 5-8bar, 36kg/h
Filling with 2 heads alternately can reduce backflow of the fluid in maximum, and then
minimize the colour change and loss of nutritional ingredients from reheating.


Made in China, but built in EU quality standard.
Semi-automatic Single-head Bag-in-Box Aseptic Filling Machine is available.
Fully-automatic Bag-in-Box Aseptic Filling Machine is available.


About the Manufacturer:
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include Bag-in-Box Fillers, Aseptic Filling Machines for Bag in Box, Aseptic Fillers for Bag in Drum, Water Plant Equipment, as well as additional equipment used in the water, beverage and food processing industry. For more information, please visit www.CalmusMachinery.com
