Fully-automatic BiB Filling Machine Bag-in-Box Cartoning Line

Industrial Equipment

Address: 5/F, Building A, Sangtai Industrial Park, Liuxiandong, Xili
City area: Nanshan
City: Shenzhen Shi
Region: Guangdong
Country: China
Website: http://www.calmusmachinery.com


Social Media Links

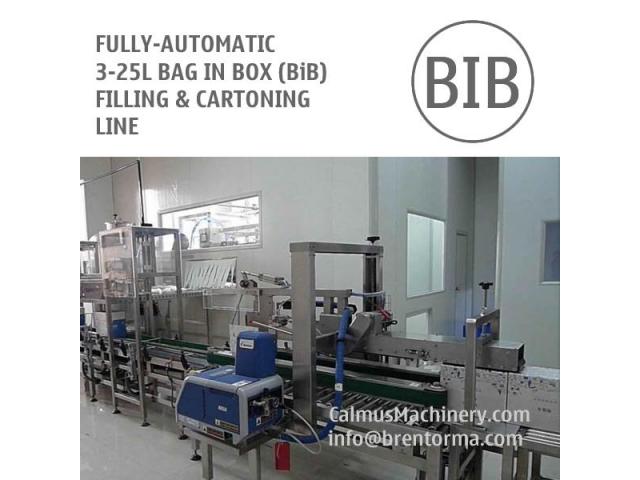

Fully-automatic Bag-in-Box (BiB) Filling and Cartoning Line

The Fully-automatic Filling and Packaging Line includes:
1. Fully-automatic Bag-in-Box Filling Machine
2. Hot Melt Glue Carton Erector
3. Bag Inserter
4. Hot Glue Box Sealer
5. Conveying Systems

The whole line is fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported. Made in China, but built at high quality level.

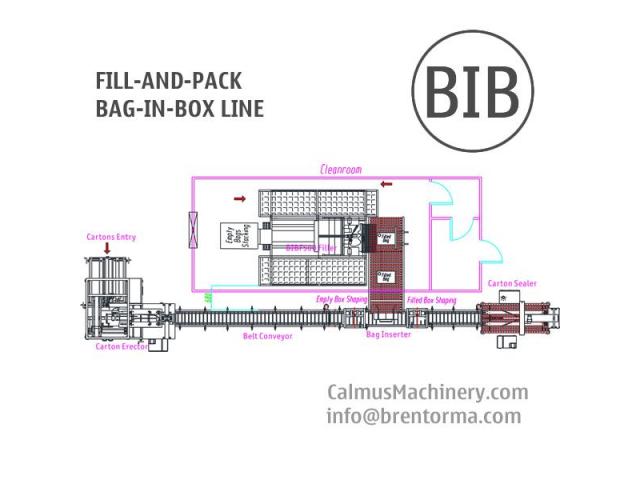

Procedures of the whole line:
1) Automatically feed bags.
2) Automatically pull cap, fill, cap and cut bags apart.
3) Automatically form cartons and seal bottoms with hot melt glue.
4) Automatically insert filled bags in boxes.
5) Automatically seal the box tops with hot melt glue.

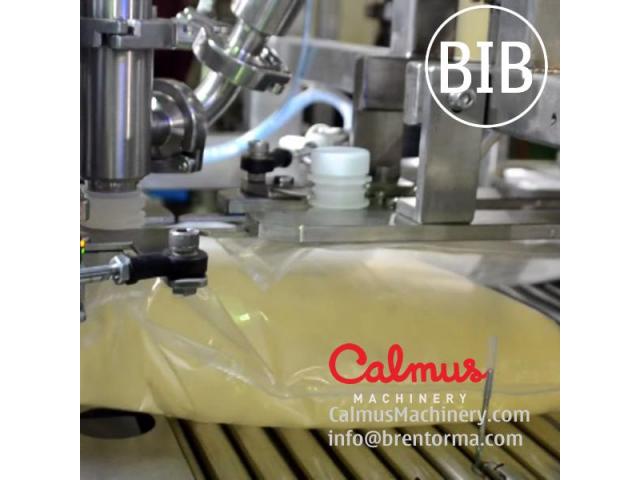

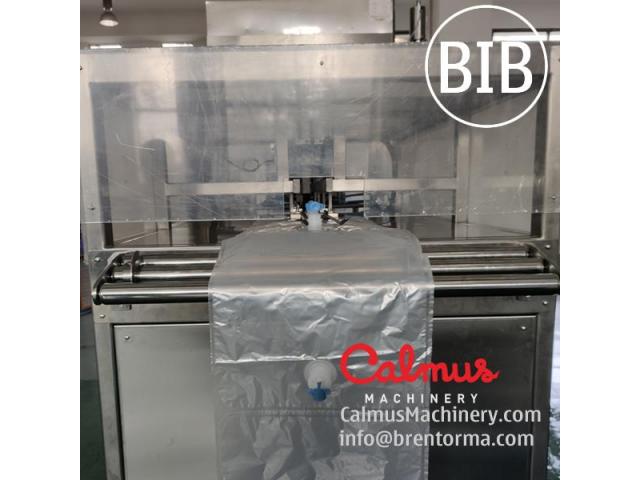

1. Fully-automatic Bag in Box Filling Machine
The Fully-automatic Bag in Box Filling Machine is especially for filling spout bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.

Specifications:

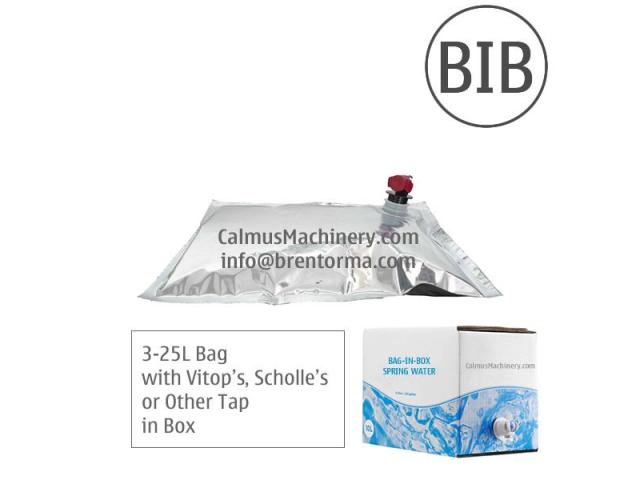

Applicable bags: pre-cut continuous module or WEB type spout bags, 3-25 litres. (Spout is called "Gland" or "Flange" too.)
Filling capacity:
500 bags/hour for 5 litres
400 bags/hour for 10 litres
300 bags/hour for 20 litres
Power: 3.0KW
Compressed air: 6-8bar, 1.5m3/h.

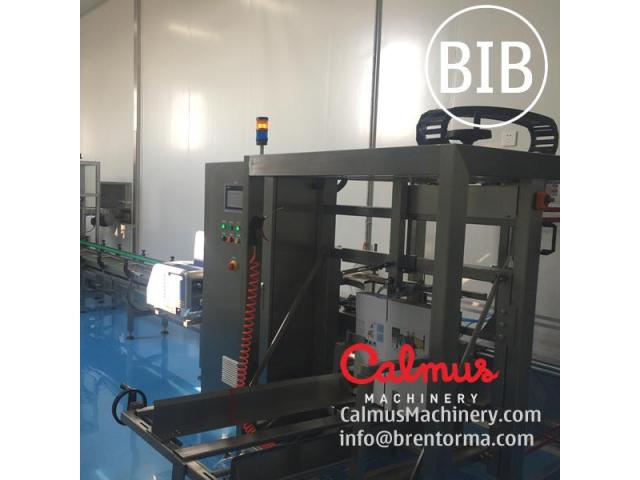

2. Carton Erector (Erecting carton and sealing bottom)
Erecting capacity: 12 cartons/min
Grade 304 stainless steel construction
Hot Melt Glue System: Nordson

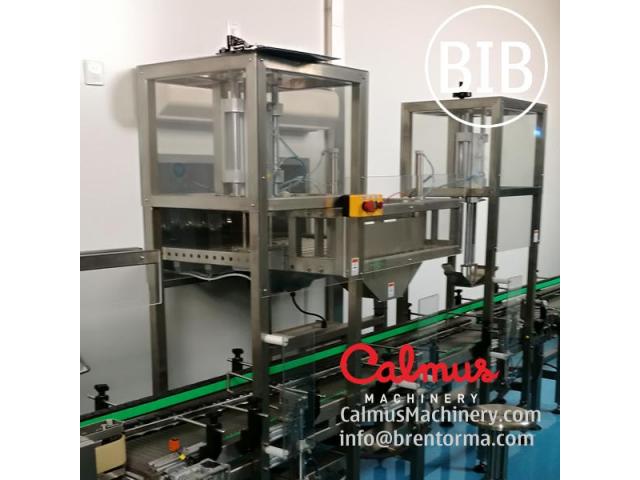

3. Bag Inserter (Inserting filled bags in cartons)
Inserting capacity: 15 bags/min
Grade 304 stainless steel body

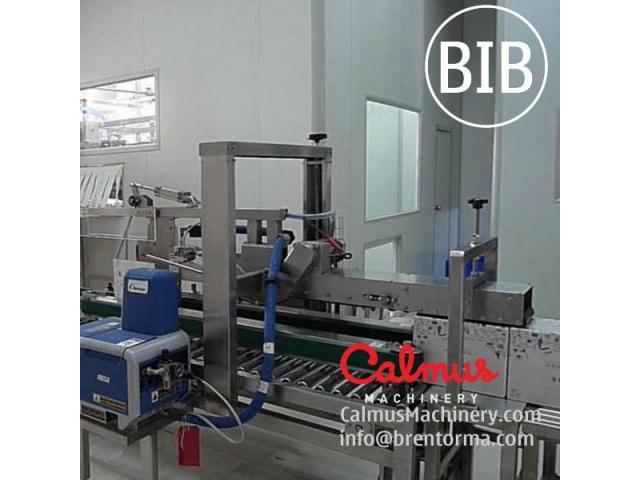

4. Hot Melt Glue Box Sealer (Closing and sealing top)
Sealing capacity: 20 cartons/min
Grade 304 stainless steel construction
Hot Melt Glue System: Nordson

5. Conveying Systems
Grade 304 stainless steel.
Made in China, but built in EU quality standard.

About the Manufacturer:
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include Bag-in-Box Fillers, Aseptic Filling Machines for Bag in Box, Aseptic Fillers for Bag in Drum, Water Plant Equipment, as well as additional equipment used in the water, beverage and food processing industry. For more information, please visit www.CalmusMachinery.com
