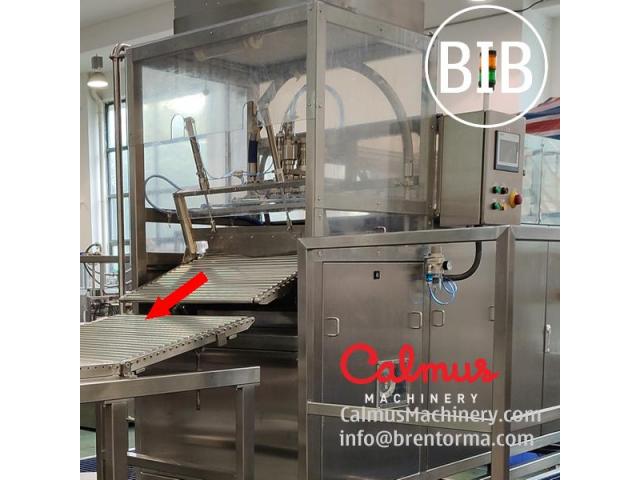

China-Made Fully-automatic BiB Filling Machine | WEB Fed Bag-in-Box Filler


The Fully-automatic BiB Filling Machine | WEB Fed Bag-in-Box Filler is especially for filling spout bags with a wide range of liquids like drinking water, post mix syrup coke, edible oil and beverage. It features fully-automatic by employing PLC and touch screen control system. The whole process of continuous bags feed, decapping, vacuumization (optional), nitrogen injection (optional), filling, capping, cutting apart from continuous bags and transiting to the conveyor can be completed automatically, no human operation required.
This filling machine can cap various spigots including Vitop and Scholle's. It is designed with CIP (Clean in Place) function and circuit connection. Grade 304 stainless steel body and 316L stainless steel fluid-contact parts.


Features:
1. Fully-automatic (automatically and continuously feeding bags, filling, capping, cutting apart and conveying).
2. Easy to use. The touch-screen control system makes operation easy.
3. Self-test and protecting function.
4. Electromagnetic flow meter system improves filling precision and truly achieves the quantitative filling.
5. Grade 304 stainless steel body and 316L stainless fluid-contact parts.
6. Filling a different capacity bag acceptable only by changing the setting.
7. Perfect spout clampping system ensures realiable running of the machine and meanwhile no damage to the bag spout.
8. Options of vacuumization and nitrogen injection available for specific products use.


Specifications:

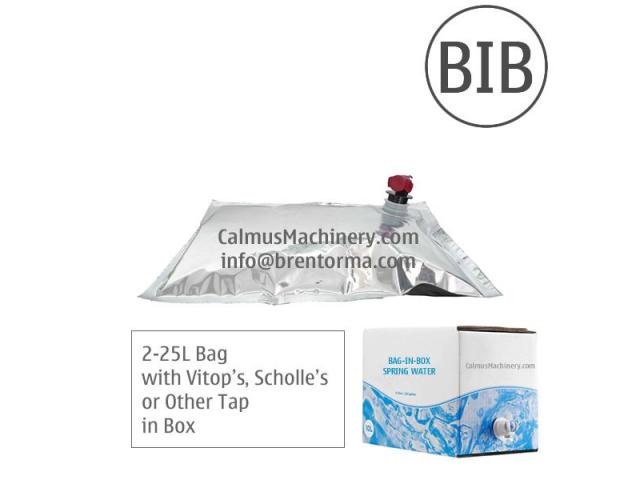

Applicable bags: pre-cut continuous module or WEB type bags, spout-fitted, 2-25 litres. (Spout is called "Gland" or "Flange" too.)
Filling capacity:
500 bags/hour for 5 litres
400 bags/hour for 10 litres
300 bags/hour for 20 litres
Power: 3.0KW
Compressed air: 6-8bar, 1.5m3/h.


Procedures:

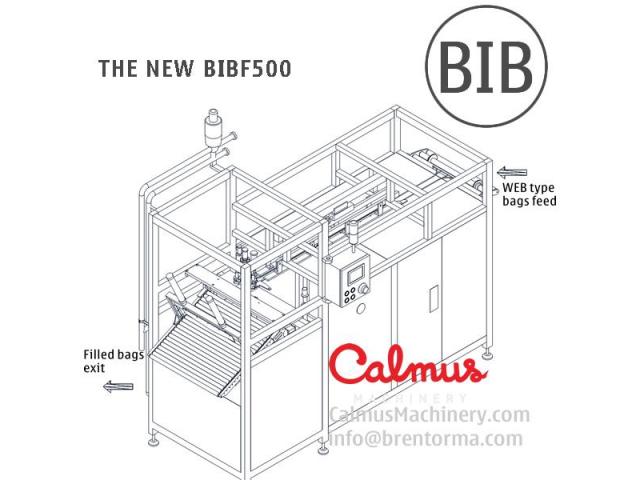

1. Automatically feed bags.
2. Automatically decap, fill, cap and cut bags apart.
3. Automatically exit filled bags.


Fully-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported. Made in China, but built at high quality level.


We also supply the whole Bag-in-Box Packaging Line which includes the Bag-in-Box Filling Machine, Box Erector, Bag Inserter and Box Sealer, fully-automatic.


About the Manufacturer:
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include Bag-in-Box Fillers, Aseptic Filling Machines for Bag in Box, Aseptic Fillers for Bag in Drum, Water Plant Equipment, as well as additional equipment used in the water, beverage and food processing industry. For more information, please visit www.CalmusMachinery.com
